PP Demister Pad with SS, PVC, PP Grids

  • Polypropylene demister of 6 stages, frameless, just the mesh, diameter 1.75 m.
  • Round shape polypropylene with size: diameter 1492 mm × 200 mm thickness with grid.
  • PP demister pad, shape: round, size: diameter 1388 mm × 150 mm thickness, without grid.
  • PP demister pad, shape: round, size: diameter 280 mm × 30 mm thickness, without grid.
  • PP demister pad, diameter of mesh pad: 1460 mm, thickness of mesh pad: 100 mm, material of grid: PVC, size of grid: FB 62.5 × 10 mm, material of bolts: PVC.
  • PP demister pad W 90 × L 180 × T 5 cm, flow 200 m3/min.
  • Polypropylene demister pad which is to be used in air outlet tower nozzle 489 mm ID × 150 mm depth.
  • Diameter 500 mm × 90 mm (H) demister pad with PP material. Water droplet removal is up to 15 micron. Demister should be installed with PP frame.
  • PP demister pad, shape: round, size: diameter 1' × 30 mm thickness, application: using for hydrochloric acid mist collection.
  • PP demister pad, diameter 300 mm and 30 mm thickness.
  • Demister overall size in diameter 280 mm × 30 mm thickness.
  • Polypropylene demister pads OD 2090 mm, ID 537 mm, thick 200 mm.
  • Polypropylene demister pads OD 2090 mm, ID 537 mm, thick 150 mm.
  • PP demister pad for zinc oxide scrubber, 20.7 m2 area, double layers lamella in V-shape type.
A round polypropylene demister pad is cut into 3 parts and the PP grid is divided into 40 sections.

Polypropylene demister pad with PP grid.

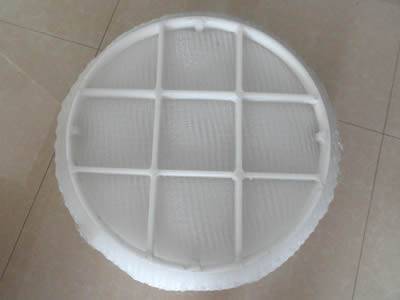

A round polypropylene demister pad with PP grid is on the floor and the grid is divided into 9 sections.

PP demister pad, total thickness: 8", pad diameter: 5' 10", flat bar size: 1" × 3/8", temperature: 250 degrees F.

A round white polypropylene demister pad with grid is in a opening carton.

Polypropylene demister pad in carton.

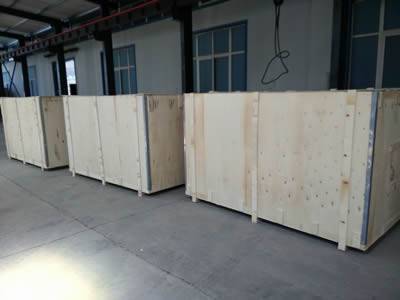

Three wooden boxes are placed in a workshop.

Polypropylene demister pad is packed in wooden box.

  • Polypropylene demister pad
    • Dimensions: 2300 mm × 2300 mm (square), total height: 150 mm total height 150 mm with grid for demister.
    • Material: Polypropylene.
    • Volume steam: 60000 m3/hod.
    • Steam temperature: 30°C.
  • PP demister pad
    • OD: 3500 mm.
    • Demister pad thickness: 100 mm.
    • Grids thickness: 150 mm.
    • Density: 100 kg/m3.
    • Weight: 150 kg.
  • PP demister mesh.
    • Width: 600 mm.
    • Density: 120 kg/m3.
    • Efficiency: 10 - 15 microns.
  • Polypropylene mesh for demister.
    • Mesh wire diameter: 0.28 - 0.3 mm.
    • Width: 450 mm, 400 mm.
  • Demister and mist eliminators mesh pad.
    • Nominal diameter: OD 5800 mm × OD 5724 mm.
    • Mesh thickness: 184 mm.
    • Material: polypropylene.
    • Number of section: 24.
    • Application: used for air scrubbers.
  • PP demister pad for scrubber.
    • 25 × 25 pall rings 1 cu.m.
    • 40 × 40 pall rings 1 cu.m.
    • 850 mm diameter demister pad.
  • Parameters of PP demister pad.
    • Dimensions: 2300 mm × 2300 mm (square), total height: 150 mm.
    • Material: polypropylene.
    • Volume steam: 60000 m3/hod.
  • Mist pad for scrubber tower.
    • Tower diameter: 1200 mm.
    • Mist eliminator height: 250 mm.
    • Material: polypropylene (PP).
  • Mesh pad demister
    • ID: 7800 mm, 6500 mm.
    • Demister material: PP.
    • Removable particle size: 10 μm.
    • Pressure drop: 50 mm WC.
    • Efficiency: 99%.
  • PP demister pad for gas cooling tower.
    • Demister pad diameter: 2700 mm.
    • Removable particle size: 42 micron.
    • Efficiency: 99.9%.
    • Type: Euroform filter (vane section).
  • PP demister pad with grid.
    • Grid material: SS 316L.
    • Demister pad OD: 1600 mm.
    • Demister pad thickness: 100 mm.
    • Total thickness: 150 mm (with top and bottom grid).
    • Surface area: 280 m2/m3.
    • Free volume: 98.2%.
    • Type: York 431.
    • Other requirements: pad in segments can pass through manhole 20".
  • PP demister pad with grid.
    • Grid material: SS 316L.
    • Demister pad OD: 1300 mm.
    • Demister pad thickness: 150 mm.
    • Total thickness: 200 mm (with top and bottom grid).
    • Surface area: 280 m2/m3.
    • Free volume: 98.2%.
    • Type: York 431.
    • Other requirements: pad in segments can pass through manhole 20".
  • PP demister pad with grid.
    • Grid material: SS 316L.
    • Demister pad OD: 1100 mm.
    • Demister pad thickness: 1000 mm.
    • Surface area: 375 m2/m3.
    • Free volume: 97.6%.
    • Type: York 421.
    • Other requirements: pad in segments can pass through manhole 20".
  • PP demister pad.
    • Demister size: 2300 mm × 2300 mm (square).
    • Total height: 150 mm.
    • Volume steam: 60000 m3/hod.
    • Steam temperature: 30°C.
  • PP demister pad with grids.
    • Demister pad diameter: 3500 mm.
    • Demister pad thickness: 100 mm.
    • Total thickness with 2 grids: 150 mm.
    • Density: 100 kg/m3.
    • Man hole: 600 mm (14 sections).
  • PP demister pad.
    • Pad size: 5800 mm × 5274 mm.
    • Mesh thickness: 184 mm.
    • Number of section: 24.
    • Application: for air scrubbers.
A packed tower and we can see the column internals, demister pads and random/structured packing clearly.
