Mister Pad - Metal and Plastic Materials

Mister pad, also called mist eliminator, is a device used for liquid and gas separation, absorption. Mister pad is made of wire meshes, stainless steel wire, copper wire, Monel wire and other metal alloy wires. Except for the metal material, the mister pad can also be made of various plastics, such as PP, PE, PVC, PVDF, PTFE.

The small diameter mister pad is designed in integrated and the large diameter mister pad is designed into several parts of drawer mister pad. This design make the mister pad be convenient for using, installing and transporting. Additional, the high quality materials of mister pad make the mister pad have excellent corrosion and rust resistance, temperature resistance and durable life.

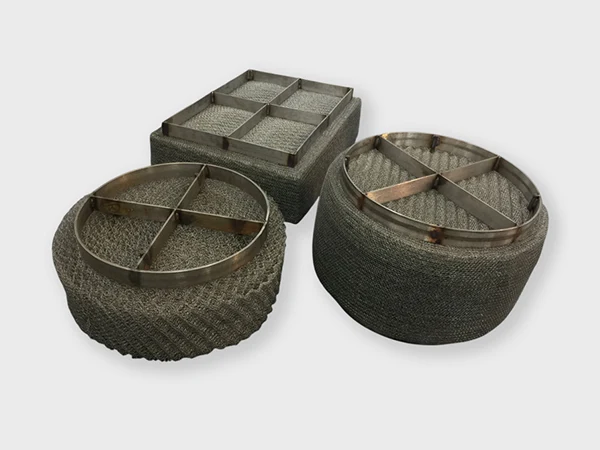

DPT-01: Mister pad have various shapes and types.

Specifications of mister pad

• Material: copper wire, monel wire, nickel wire, stainless steel wire, plastic wire.
• Wire diameter: 0.2 mm, 0.22 mm, 0.23 mm, 0.25 mm, 0.28 mm, 0.3 mm, 0.35 mm.
• Mesh size: 2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.
• Height or thickness: 100 mm to 150 mm.
• Pad diameter: 300 mm - 6000 mm.

Features of mister pad

• Various materials for choice. Metal or plastic materials to suit different applications and environments.
• High filtering and separating efficiency.
• Convenient for install and transport. The large diameters mister pad are designed into drawer type which is convenient for install and transport.
• Acid and alkali resistance.
• Corrosion and rust resistance.
• Durable and long service life.

Applications of mister pad

Mister pad can be used in various industrial applications for gas and liquid separating:

• Chemical industry.
• Petrochemical industry.
• Pharmacy.
• Light industry.
• Environmental protection.
• Water treatment industry.

Mister pad classification

• According to the material
  • Metal mister pad.
  • Plastic mister pad.

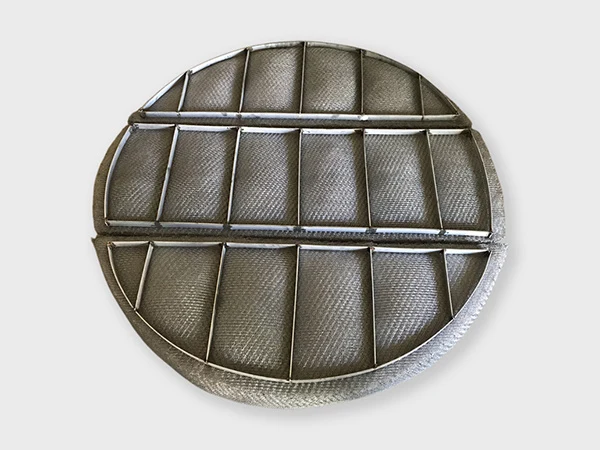

  DPT-02: Metal mister pad.

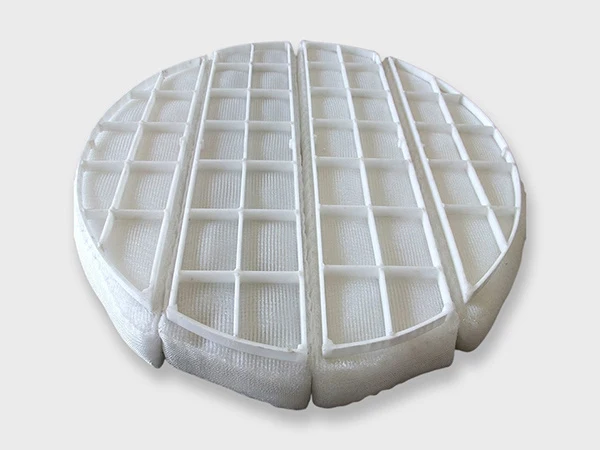

  DPT-03: Plastic mister pad.

• According to the shape
  • Round shape.
  • Rectangular shape.
  • Ring shape.
  • Special shape.

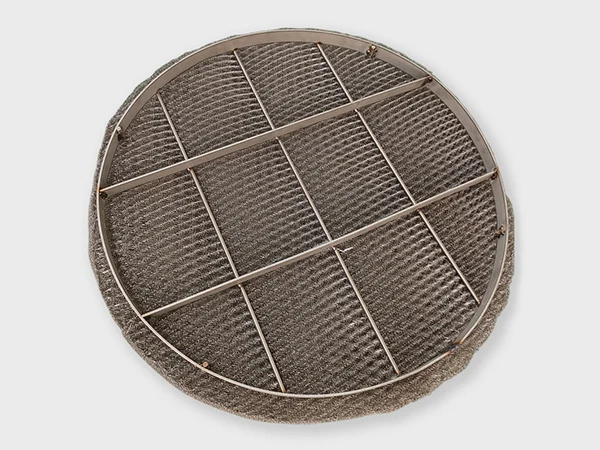

  DPT-04: Round shape mister pad.

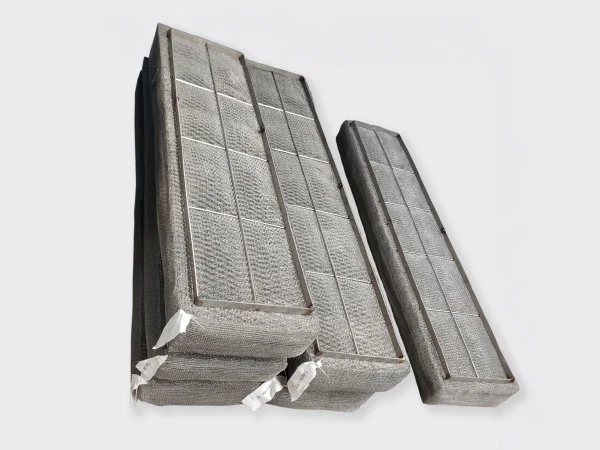

  DPT-05: Rectangular shape mister pad.

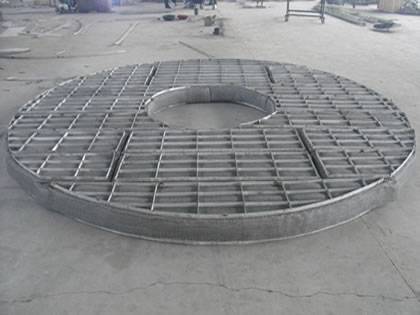

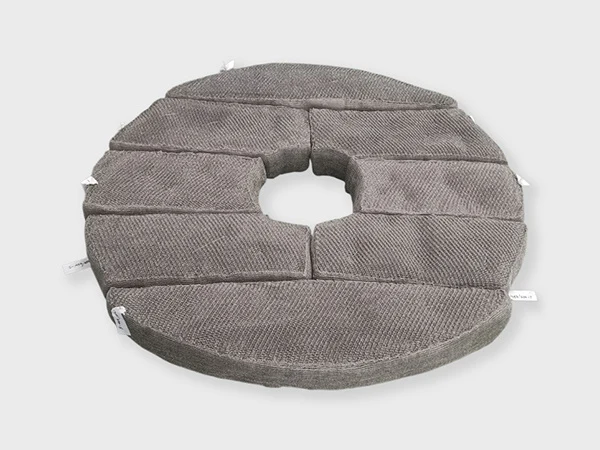

  DPT-06: Ring shape mister pad.

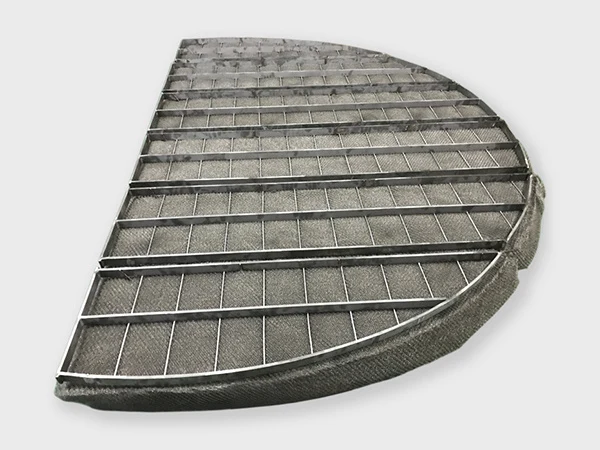

  DPT-07: Special shape mister pad.

• According to the appearance
  • Standard mister pad.
  • Wavelike mister pad.


  DPT-08: Standard mister pad.



  DPT-09: Wavelike mister pad.

• According to the component
  • Knitted wire mesh.
  • Knitted wire mesh and grating.
  • Knitted wire mesh, supporting mesh and grating.
  • Knitted wire mesh, supporting mesh and frame.

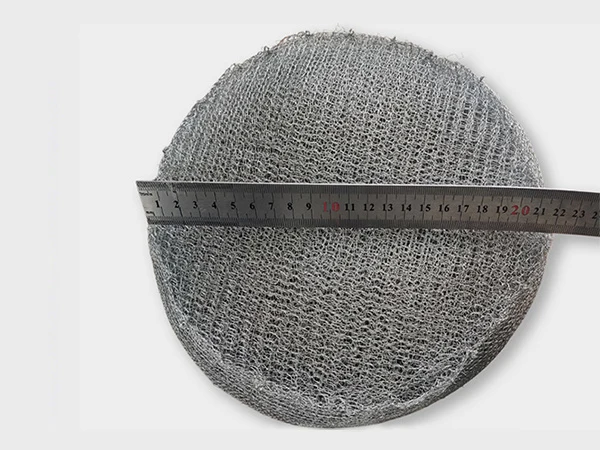

  DPT-10: Knitted mesh mister pad.

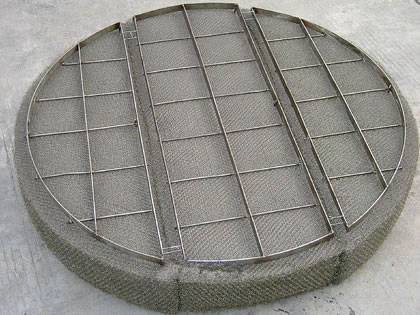

  DPT-11: Knitted mesh and grating mister pad.

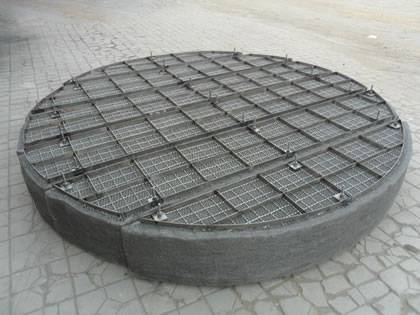

  DPT-12: Knitted wire mesh, supporting mesh and grating type mister pad.

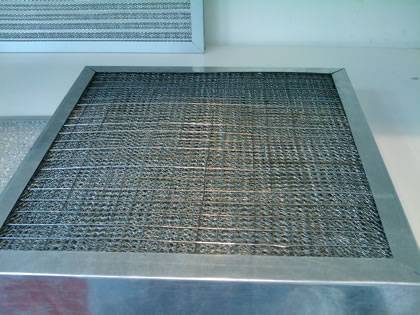

  DPT-13: Knitted wire mesh, supporting mesh and frame type mister pad.

• According to the structure
  • Integrated mister pad.
  • Drawer mister pad.


  DPT-14: Integrated mister pad.

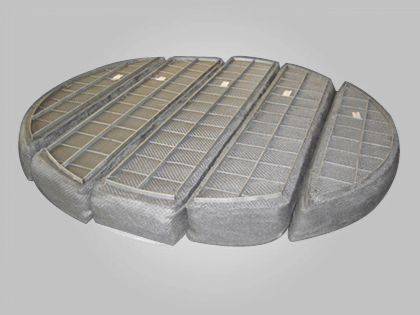

  DPT-15: Drawer mister pad.

• According to the grating type
  • Round bar grating.
  • Flat bar grating.
  • Round and flat bar grating.

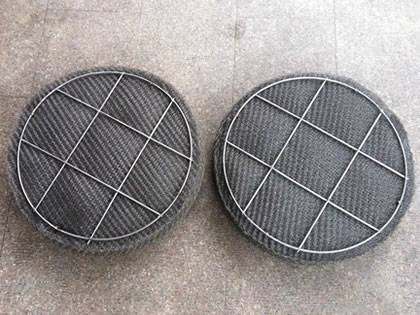

  DPT-16: Round bar mister pad.



  DPT-17: Flat bar mister pad.



  DPT-18: Round and flat bar mister pad.

• According to the knitted wire mesh type
  • Standard knitted wire mesh.
  • Ginning knitted wire mesh.


  DPT-19: Standard knitted wire mesh mister pad.

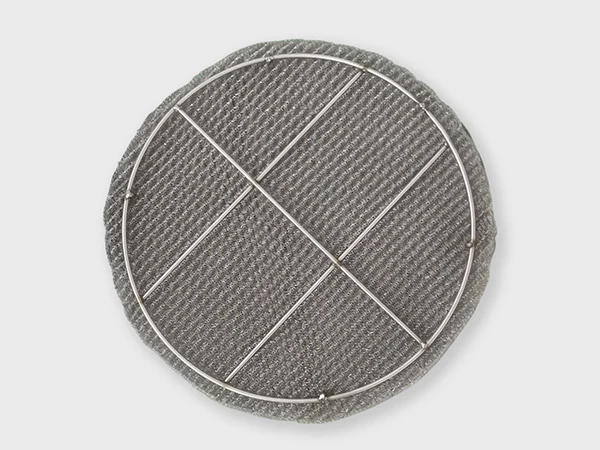

  DPT-20: Ginning knitted wire mesh mister pad.
