Drawer Demister Pad - Easy Installing and High Filtering Efficiency
Drawer demister pad, which suitable for the HG/T21586 demister pad, is composed of the knitted wire mesh panels and gratings. The knitted wire mesh can be metal material, which is including stainless steel, copper and other alloy steel. It can also be plastic material, such as PP, PE, PVC, PTFE. The knitted wire mesh can be made into 100 mm and 150 mm height for different filtering efficiency applications. The grating is mainly used for support the demister pad and easy installation.
Drawer demister pad grating type
- The material of the drawer demister pad grating can be carbon steel, stainless steel and plastic.
- The stainless steel can be used in any types drawer demister pad.
- The carbon steel is economical, which is suitable customers with tight budget.
- The plastic grating is commonly used with plastic knitted mesh demister pad.
DDP-01: Stainless steel grating drawer demister pad.

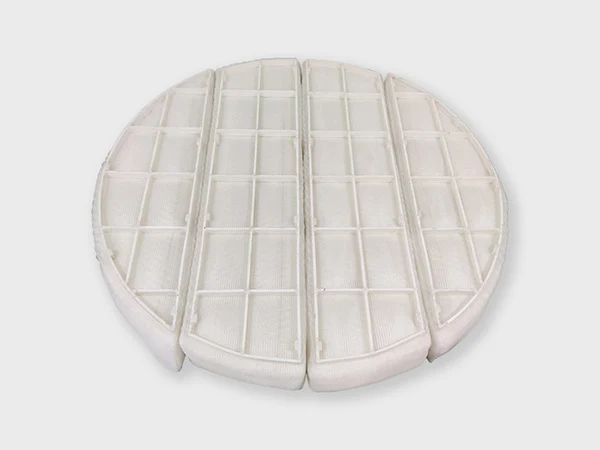

DDP-02: Plastic grating drawer demister pad.

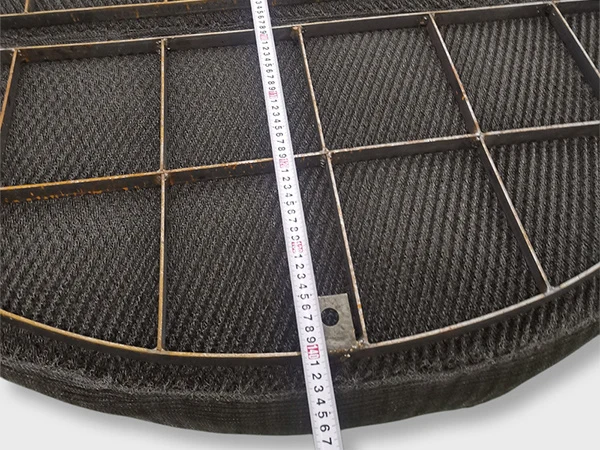

DDP-03: Carbon steel grating demister pad.
Specifications of drawer demister pad
- Material: stainless steel, copper, Monel, PP, PE, PVC and so on.
- Wire diameter: 0.2 mm, 0.22 mm, 0.23 mm, 0.25 mm, 0.28 mm, 0.3 mm, 0.35 mm.
- Mesh size: 2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.
- Panel height: 100 mm or 150 mm.
- Panel diameter: 300 mm - 5000 mm.
- Component: 1, 2, 4, 6, 8, and other parts.
| Item | Panel diameter (mm) | Panel height (mm) | Effective demister area (m2) |
|---|---|---|---|
| DDPS-01 | 300 | 100/150 | 0.04 |
| DDPS-02 | 400 | 100/150 | 0.09 |
| DDPS-03 | 500 | 100/150 | 0.15 |
| DDPS-04 | 600 | 100/150 | 0.21 |
| DDPS-05 | 700 | 100/150 | 0.27 |
| DDPS-06 | 800 | 100/150 | 0.38 |
| DDPS-07 | 900 | 100/150 | 0.47 |
| DDPS-08 | 1000 | 100/150 | 0.57 |
| DDPS-09 | 1200 | 100/150 | 0.83 |
| DDPS-10 | 1400 | 100/150 | 1.17 |
| DDPS-11 | 1600 | 100/150 | 1.56 |
| DDPS-12 | 1800 | 100/150 | 1.98 |
| DDPS-13 | 2000 | 100/150 | 2.54 |
| DDPS-14 | 2200 | 100/150 | 2.94 |
| DDPS-15 | 2400 | 100/150 | 3.57 |
| DDPS-16 | 2600 | 100/150 | 4.21 |
| DDPS-17 | 2800 | 100/150 | 4.60 |
| DDPS-18 | 3000 | 100/150 | 5.38 |
| DDPS-19 | 3200 | 100/150 | 6.33 |
| DDPS-20 | 3400 | 100/150 | 7.24 |
| DDPS-21 | 3600 | 100/150 | 8.23 |
| DDPS-22 | 3800 | 100/150 | 8.74 |
| DDPS-23 | 4000 | 100/150 | 9.96 |
| DDPS-24 | 4200 | 100/150 | 11.00 |
| DDPS-25 | 4400 | 100/150 | 12.29 |
| DDPS-26 | 4600 | 100/150 | 13.50 |
| DDPS-27 | 4800 | 100/150 | 14.94 |
| DDPS-28 | 5000 | 100/150 | 16.27 |

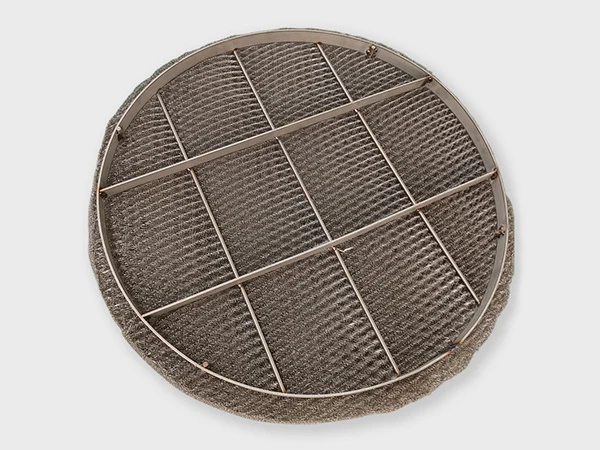

DDP-04: One-part drawer demister pad.
DDP-05: Two-part drawer demister pad.
DDP-06: Three-part drawer demister pad.

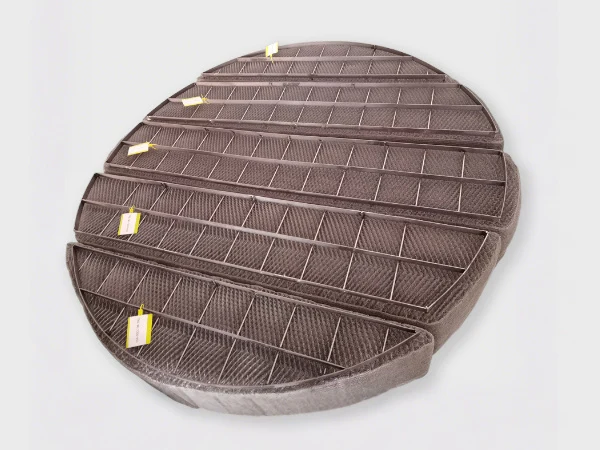

DDP-07: Five-part drawer demister pad.
Features of drawer demister pad
- Easy to install and uninstall. The drawer demister pad are separated into several pats for easy install and transport.
- Easy to replace. The drawer demister pad is detachable design, you can replace the broken panels easily. It needs little maintenance.
- High filtering efficiency. High efficient knitted wire mesh ensure the high filtering efficiency.
- Durable and long service life. High corrosive resistance make it be durable and long lasting.
Applications of drawer demister pad
Drawer demister pad can be installed in the center or upper of the towers. It can also be used in the individual liquid-gas separating devices.
Drawer demister pad has more than 50 kinds of types with different diameters, it can suit most of the filtering applications in chemical, pharmacy, petroleum.
